Swarn Jal® (Model: A-SE20M) Level Sensor for Water Tank (+20 Meter Extension Wire), Water tank overflow & empty alarm with 4 Level Indicator, Battery Operated

(13 customer reviews)
26 people are viewing this product right now

Original price was: ₹1,999.00.Current price is: ₹1,045.00.

or
Estimated delivery:3 days
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with American Express Pay safely with Maestro Pay safely with Bitcoin
Guarantee Safe and Secure Payment Checkout

Download Safety Instructions

Download Policy

Level Sensor For Water Tank Key Features :-

  • 24*7 Water Level Indication with 4 levels – 25% (Reserve Alarm), 50%, 75%, 100% (Full Alarm) and error detection.

  • Alarm Sound: Beep

  • Overflow & Empty Alarm shuts off automatically after 45 seconds if it remains unattended. User can shut off the alarm any time before 45 Seconds.

  • Overflow Alarm Sound: Continuous Loud Beep.

  • Empty Alarm Sound: Intermittent Loud Beeps.

  • 100 % Shockproof, even if Device gets any failure.

  • Runs on 2 AA replaceable batteries/Cells (Normal clock batteries/cells).

  • Once Batteries/cells are inserted, they last for 1-3 Years.

  • A Low Battery Warning: Short beep in Every two hours.

  • 4 Brass Sensors (Better than Steel Sensors): It does not contaminate or pollute the water in any way, nor does it ever rust.

  • Sensor Hub 100 % Waterproof. It can withstand all Harsh weather. It can bear -60° Cold to 90° (Heat) Temperature.

  • Two Wire: User only needs two wires From Alarm to the water tank.

    It gives 4 level indications in just 2 wires.

  • Wire Breakage Indication: – Red & Violet Color alternatively Shows in LED.

  • All parts covered in Guarantee. 6+6 Months Complete Guarantee.

  • Easy installation: In case you need our help, our support team is happy to help! We offer free guidance over phone or video call and can even assist your local electrician if needed.

  • Installation Video: https://www.youtube.com/watch?v=KfG3KalzElE&t=3s

How to test the device?

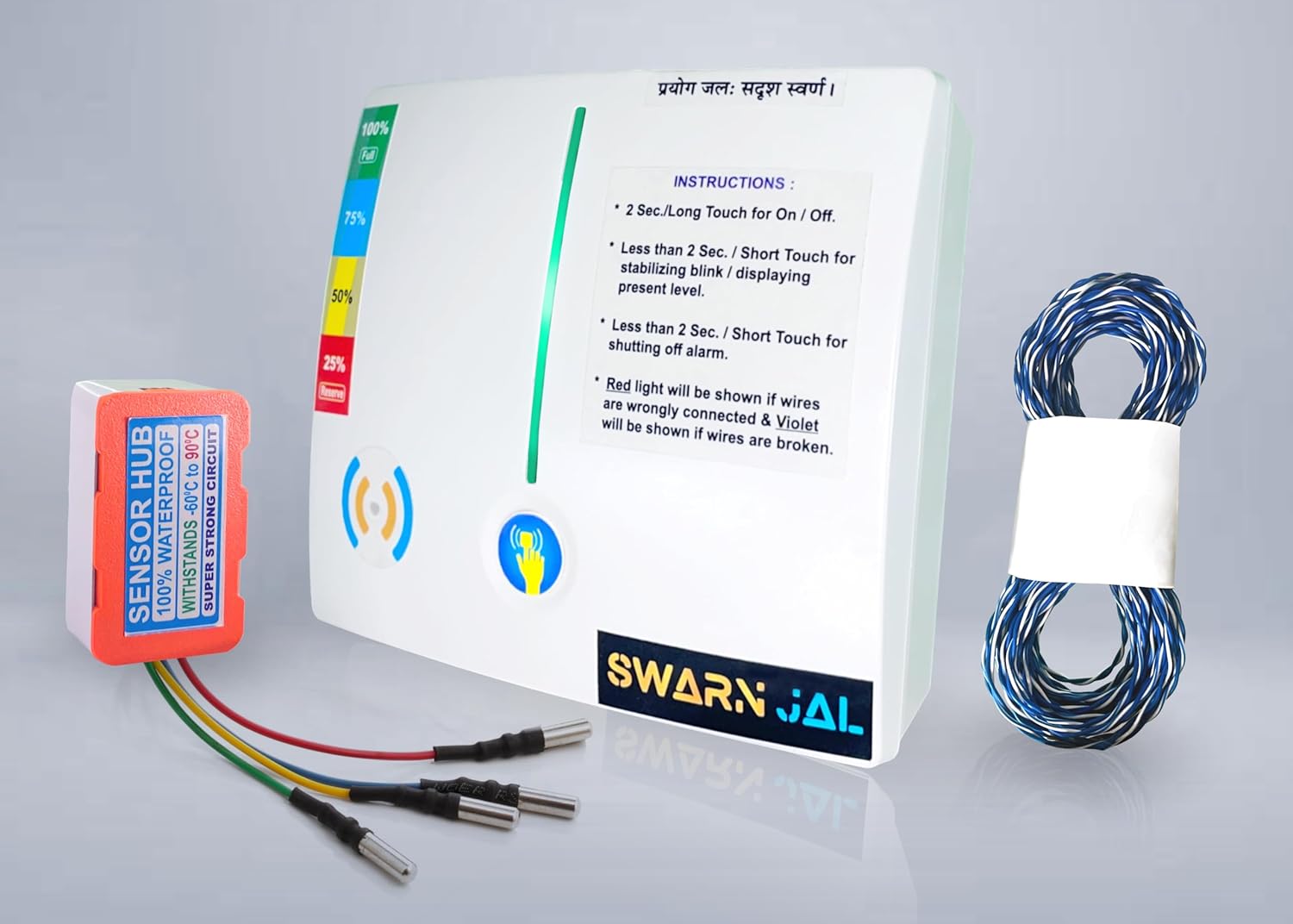

Open the Box and User will see 2 Units (Main Unit and Sensor Hub) connected using a copper wire. These 2 wires are joint together. You need to cut these wires as extension wire needs to be attached for Installation purpose but before installation we can check the working of device with following steps: Short Touch means less than 2 seconds touch. Long Touch means 2 seconds touch or more.
INSERT BATTERIES: User needs to insert 2 AA batteries (Preferred Alkaline Batteries like Duracell, Energizer, GP Line etc.) in the back side of Main unit. This will start the unit with a Green, Red & Blue Blink in the Indicator. Untangle All the sensors: Separate all the sensors from each other and take a plastic glass (not steel) of
water for testing.
DIP SENSORS in the Water: Dip the Red and Yellow sensor in the water and wait for 5 Seconds, this will indicate yellow color in the indicator, Now dip the blue sensor with previous ones and wait for 5 Seconds, this will indicate blue color in the indicator.
Now dip the GREEN sensor with previous ones and wait for 5 Seconds, this will indicate GREEN color in the indicator and give a loud Alarm for 45 seconds. Short Touch the Round button just below the indicator and Alarm will go OFF. After 45 seconds alarm will go off automatically.
Now remove BLUE and GREEN wire and wait for 5 seconds until Yellow color is not shown in the indicator. Remove the Yellow wire and wait for 5 Seconds. This will Give RED color and 20 Loud Beeps that indicates that water in the tank has reached Reserve Level. Short touch to shut off the beeps.
SHORT TOUCH: Current Level will be prompted to the user on short touching the Switch.
LONG TOUCH: Device will switch off and switch on if user long touches the switch.
Device will give a short Beep Sound and Red light in indicator for Switch OFF and Short beep followed by Green, Red & Blue blink for Switch ON.



How to Install?

Device has very simple procedure for installation. In the box you will find Main unit and a sensor hub.
Sensor Hub/Transmitter has Four sensor wires:
1. RED Wire: This is common wire and goes to the base.
2. YELLOW Wire: This is reserve Level Wire and should be just above Reserve water level in the tank (Approximate 30% of full Capacity).
3. BLUE Wire: This is Level 3″Wire and should be at Approximate 60% of full Capacity.
4. GREEN Wire: Full Water tank wire that should be just below the overflow pipe.
Cut these wires as per the lengths mentioned above with respect to the tank and re-attach the Sensor Wires. Device won’t work properly if these copper wires are not attached properly.
Now Fix the sensor Hub on the inner roof of the tank with Double sided tape. This is Professional double-sided tape and doesn’t loose with time. Make Sure that Tank Roof is properly cleaned before Affixing the Hub.
Connect the transmission wires with the extension wire considering the polarity (The same colored wires should be attached with their same colored wire to the main unit) If transmission wires are not connected properly then device will only Red Color irrespective of the Level in Water Tank. Here we are done with the Sensor hub installation.
Now Attach the main unit to transmission wires, again taking care of the polarity (Not Connecting Wrong wire to each other) and insert the 2 AA batteries into the unit (Alkaline like Duracell, Energizer etc. Batteries Preferred). The device will start with a Green, Red & Blue Blinking LED. Indicator LED will take nearly 5-10 Seconds to Initiate the operation. After that it will show respective COLOR (RED, YELLOW/AMBER, BLUE, GREEN).
Device has a touch button just below the indicator that has following Working: –
Short Touch (less than 2 seconds)-Shut off the buzzer.
Long Touch (2 seconds)- ON/OFF the device.
