Swarn Jal Water Tank Overflow Alarm + 25 Meter Extension Wire

(स्वर्ण जल वाटर टैंक ओवरफ्लो अलार्म + 25 मीटर एक्सटेंशन वायर)

Colour: White
Brand: Swarn Jal
Power Source: 220V-240V AC for Receiver
Product Dimensions: 15L x 10W x 5H CM
Item Weight: 230 Grams
Packer: Prickhome Technologies Pvt Ltd
Model: A-VO25M
Generic Name: Water Tank Overflow Alarm
Manufacturer: Prickhome Technologies Private Limited
Warranty: 1 Year
Policy: Download User Manual

Key Features / मुख्य विशेषताएँ

• 100% Shock Proof – Fully Cell Operated (सेल से चलने वाला)
• Long Battery Backup: 1–3 Years (1–3 साल तक लंबा बैकअप)
• Sensor Wire Extendable Beyond 500 Meters (500 मीटर से ज्यादा बढ़ाने की सुविधा)
• No Performance Loss Even After Extra Wire Extension (अतिरिक्त वायर जोड़ने पर भी परफॉर्मेंस में कोई कमी नहीं)
• Alerts Before Water Tank Overflows (टंकी ओवरफ्लो होने से पहले अलार्म)
• Nickel Plated Brass Sensors – Rust Free & Water Safe (निकेल प्लेटेड ब्रास सेंसर, जंग रहित और पानी सुरक्षित)
• Strong and Durable ABS Body (मजबूत और टिकाऊ ABS बॉडी)
• 1 Year Complete Replacement Warranty (1 साल की कम्प्लीट रिप्लेसमेंट वारंटी)

Product Description

Swarn Jal Water Tank Overflow Alarm is a reliable and safe device that alerts you before your water tank overflows. It is cell operated, so it is 100% shock proof and completely safe for home and commercial use, even if any internal failure occurs.

The device offers a long battery life of 1 to 3 years on a single set of cells, reducing the need for frequent replacement.

One of the biggest advantages of this alarm is its extra-long sensor wire support. Using a single pair cable, the sensor wire can be extended beyond 500 meters from the device to the water tank. Even after adding extra wire beyond 500 meters, the performance remains fully optimized and accurate, making it ideal for large houses, buildings, and factories.

It uses high-quality nickel-plated brass sensors, which are far better than steel sensors. These sensors do not rust and never contaminate water. The device comes in a strong ABS body and is backed by a 1-year complete replacement warranty.

🔍 How to Test the Device (Before Installation)

1. Insert 2 AA batteries into the device.
2. Switch the device ON.
3. Take a glass or container filled with water (non-metal).
4. Dip both brass sensors into the water.
5. The alarm should start sounding immediately and continue until the device is switched OFF or the sensors are removed from water.
6. This confirms that the alarm is working properly.

🔧 How to Install the Device (Step-by-Step)

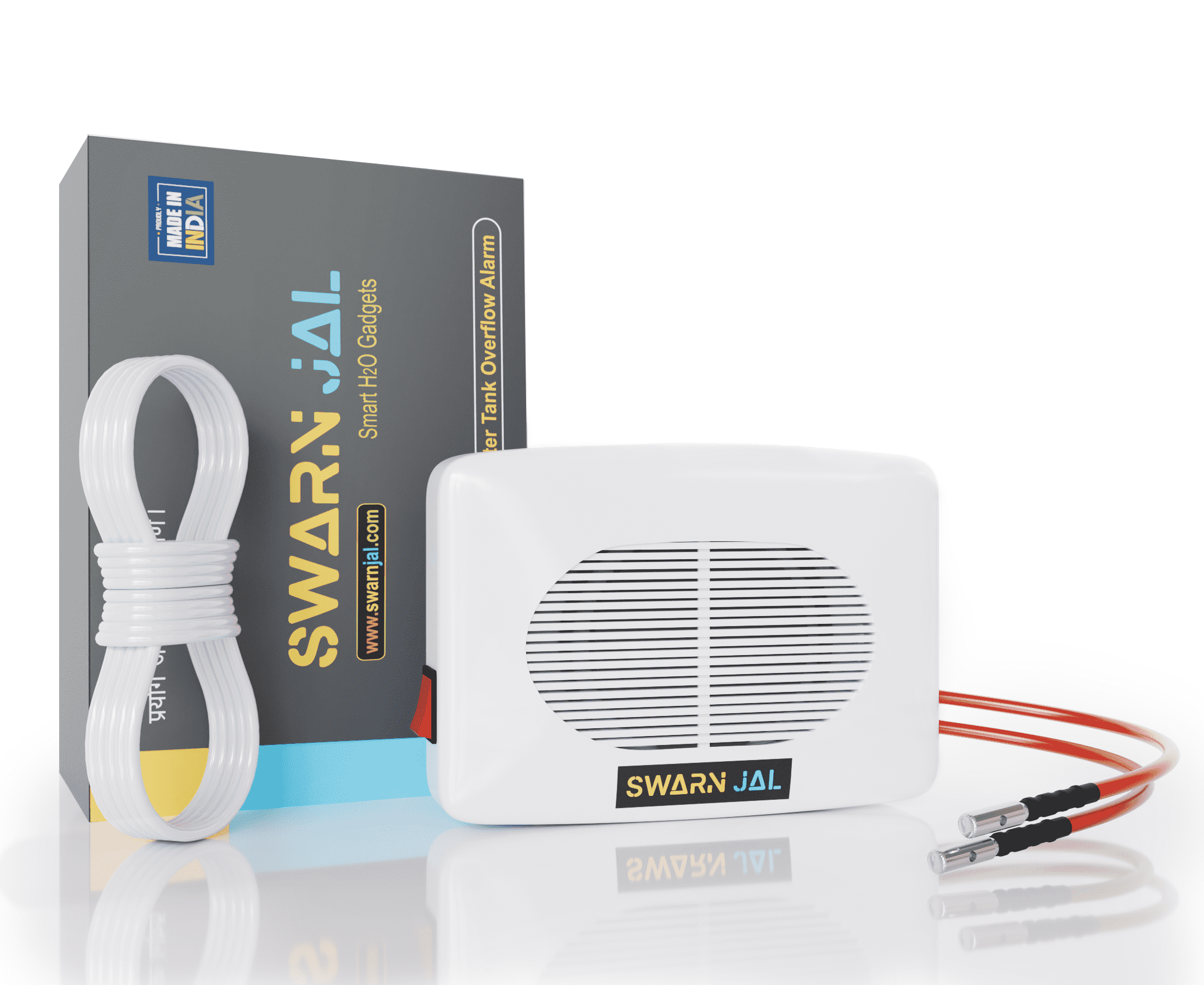

Step 1: Open the Box

• Inside the box, you will find the main alarm unit and two brass sensors already connected with wires.

Step 2: Insert Batteries

• Open the battery compartment at the back of the device.
• Insert 2 AA batteries (Alkaline batteries like Duracell or Energizer are recommended for longer backup).

Step 3: Extend Sensor Wire (If Required)

• Cut both sensor wires from the middle.
• Join a single pair extension cable between them.
• The sensor wire can be extended beyond 500 meters without any loss in performance.

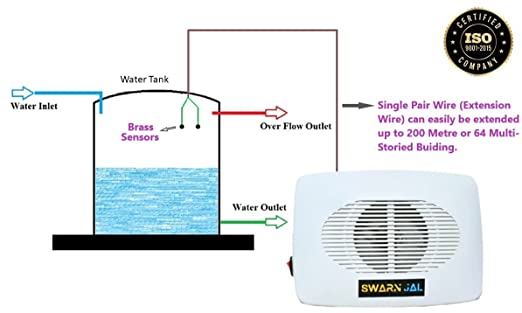

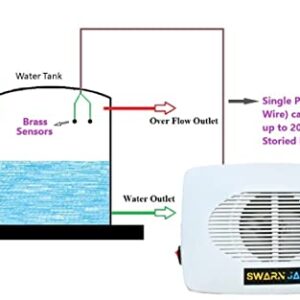

Step 4: Fix Sensor Position in Water Tank

• Place one sensor near the bottom of the water tank.
• Place the second sensor at the water level where you want the alarm to sound (near full level).

Step 5: Important Placement Note

• Make sure both sensors do not touch each other.
• If sensors touch, the alarm will ring continuously.

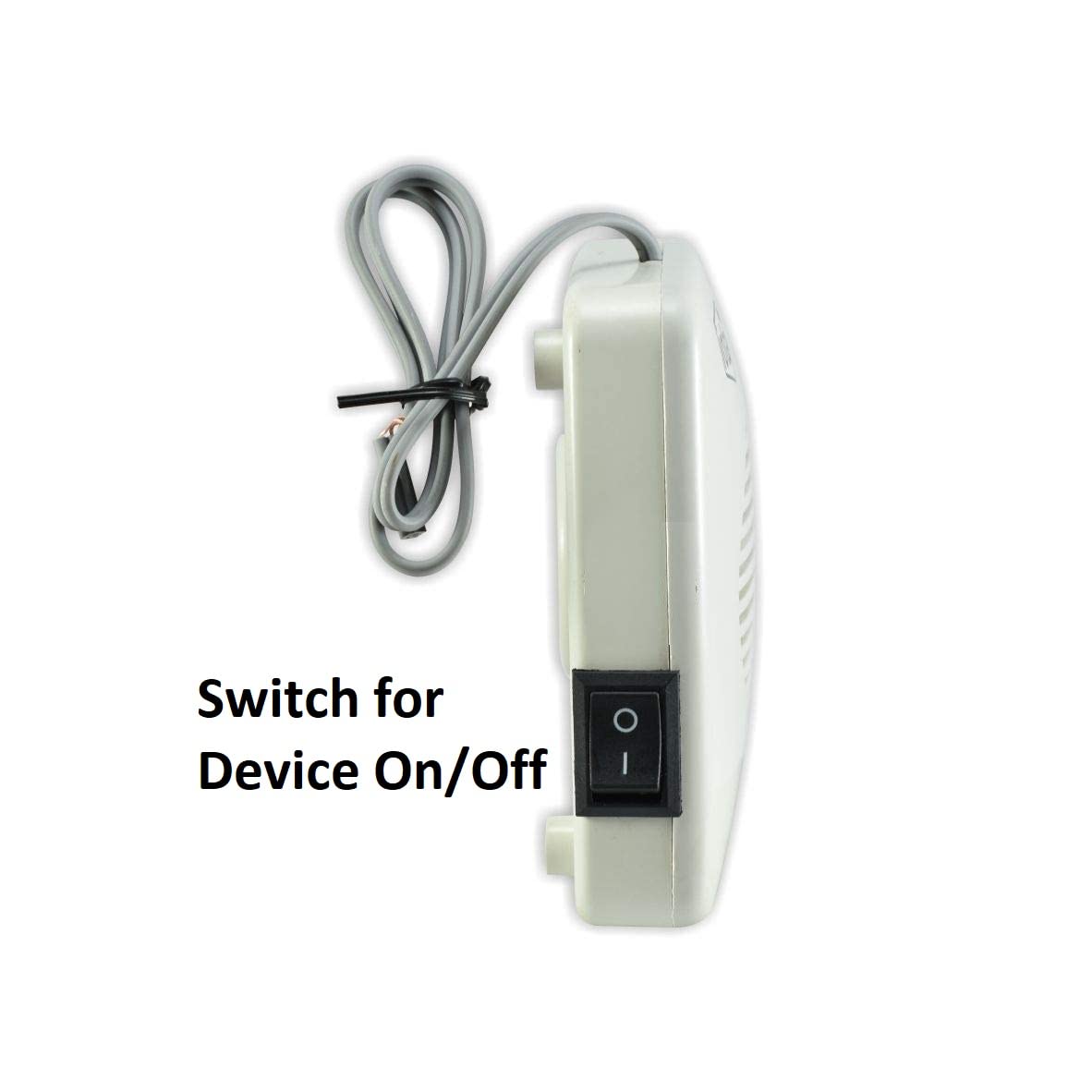

Step 6: Switch ON the Device

• Turn ON the device.
• Installation is complete.
• When water reaches the upper sensor, the alarm will sound and alert you to switch off the water pump.
