How It Works?
Transmitter Unit
Water Tank Level Indicator Wireless comes with One Transmission Unit that needs to be installed on Inner roof of water tank with help of two rubber blocks and Super Glue OR with the Help of screws as per convenience.
This Device has 4 inbuilt LEVEL Sensors which can be adjusted as per the requirement to Sense the Water Level.
Transmitter has a Set of 3 AA batteries inside to power it for up to 3 years and can be replaced Easily with new batteries.
No External Power Source is required to power the Transmitter Unit and it comes with an Open-Air range of up to 2 KMs or Up to a 10 Floors building.
Receiver Unit
Water Tank Level Indicator Wireless comes with One Receiver Module that can be installed at any convenient Location Inside the Home. This Module has inbuilt Rechargeable Lithium-ion Battery inside that can be recharged using any Mini USB charger.
Once charged it can give power back up to 48 Hrs. Charger is also provided with the Device.
This Receiver Displays Different colors based on Water Level inside the tank.
Can I use Multiple Devices in One Building/Area?
YES, Every Receiver and Transmitter works on a unique key and will not interfere with another Pair.
User should not worry about using multiple devices in same building or in its nearby Buildings as we have millions of unique Keys for Each pair.
Also, there is no Pairing required for the units and user just needs to install the units and it will work in Pure wireless Manner without any Flaw.
Receiver Unique Features:
This is Very Light Portable Device that interacts with User and Displays Different Levels and Warning By means of Colorful LED and a set of Dual Buzzers. There is Once soft Touch Button that can be used to stop the Buzzer ring during the Overflow Alarm or Reserve tank Alarm.

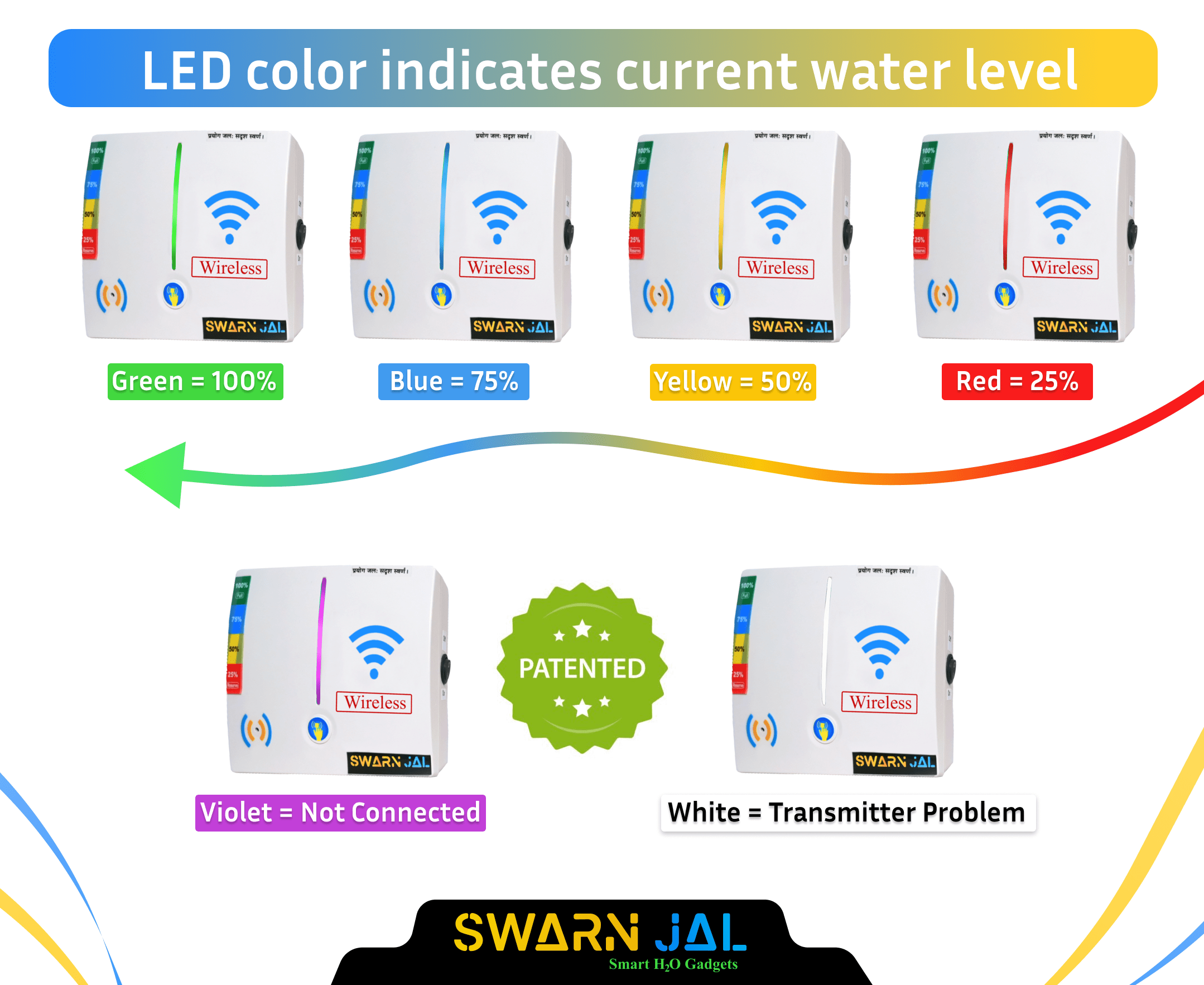

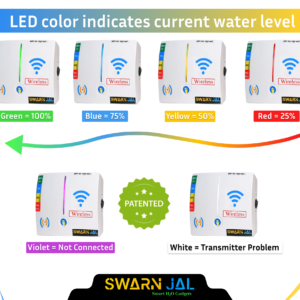

Indicates 4 Different Levels by Set of 4 Colors in Indicator.
RED : Reserve(25%) Yellow : 50% Blue : 75% Green : Full(100%)
Blinks Green and Blue color during Initial Pairing once Device is Powered On.
Long power back up to 48 Hrs.
If Battery in Transmitter is About to die it Continues its operation and shows the water Level, but LED will Keep on Blinking to alert the user to change the Battery in the Transmitter unit.
Transmitter Unique Features:

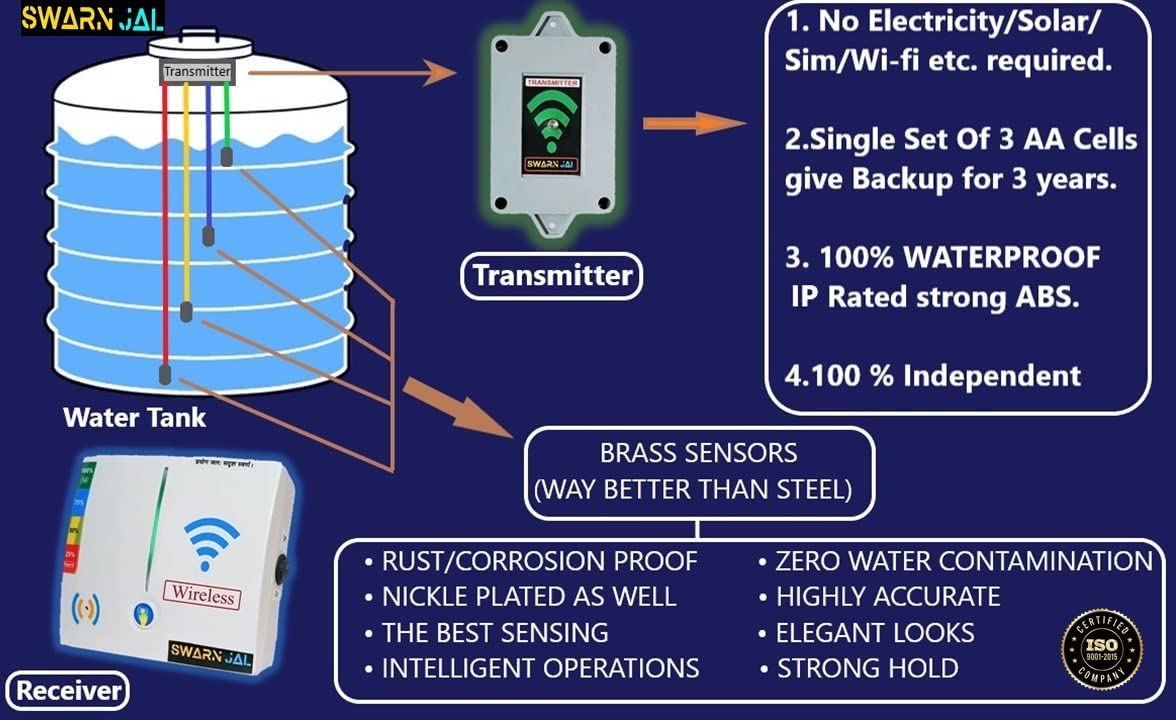

Transmitter Unit is Installed inside water tank, and it has IP 65 rated Bix that Encloses a set of 3 AA Batteries (Regular Pencil cells), Water Sensing Unit and wireless Unit & one Heartbeat LED.

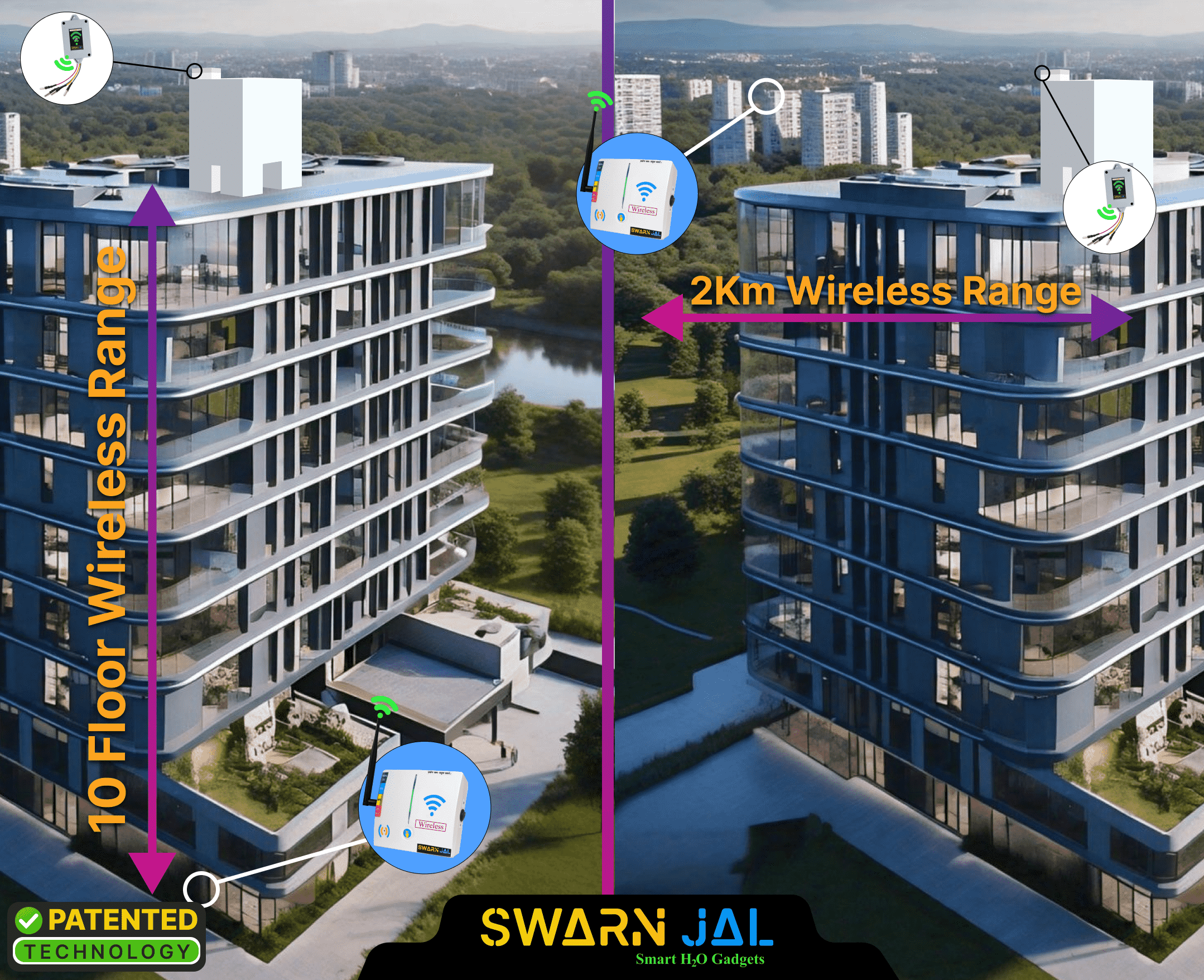

This device has Wireless range of up to 10 Floors building & 2 Kilometres. It has long Power backup of more than 3 years on single set of 3 AA cells.
This Unit Senses the Levels and take a time of 10 Seconds for stabilization and Transmission of new Level to Receiver Unit.
Blinking Heartbeat LED confirms that Device is Active and working Properly.
Very easy to Install inside the water tank with sturdy ABS material makes it Weather and Monkeys proof with 4 Customizable brass sensors.
All these 4 Level Sensors’ Wires (Red, Blue, Yellow, Green) can be Extended by cutting & adding extra Wire or cut or wrap short as per the Water Tank Depth or Height.
How to Install?
(Download Manual)
It is very Easy to install. This Device with 2 steps Installation.
Installation: – Wireless water Level indicator/Overflow & Empty Alarm Consists of two units:
1. Transmitter
2. Receiver
Transmitter Unit Installation Process:
Take out the Transmitter and check for blinking blue LED in the Transmitter box. Transmitter Unit is Installed inside water tank. It is IP65 rated waterproof Box that Encloses a set of 3 AA Batteries (Regular Pencil cells), Wireless 4 Water Sensing cables with brass sensors and one Heartbeat LED. Transmitter Unit has long Power backup of more than 3 years on single set of 3 AA batteries. Now measure the tank height in which it is needs to be installed and adjust the length of sensor wires as per the Tank Height such that red Sensor wire goes to the bottom and Green just below the overflow pipe inside the tank. (User can extend all the sensors wire by cutting them from middle and attach any normal wires for extension and then reattach the cut wires to end of the extension wire. User can also cut/wrap short all the sensor wires as well.) Now Clean the inner roof of tank and Fix the Transmitter unit with the help of given Super glue and rubber block or with the help of Two screws as per user’s Requirement. Transmitter Unit Senses the Levels and take a time of 10 Seconds for stabilization and Transmission of new Level to Receiver Unit. Blinking Heartbeat LED in Transmitter Unit confirms that Device is Active and working Properly. Here we are done with Transmitter Installation.
Receiver Unit Installation Process:
For Receiver Unit, just power it ON by pressing the side Switch and it will blink green and blue light alternatively. Wait for 10 Minutes for Device Boot and Pairing. Once paired, Stable colour will be displayed to the User as per the level inside the tank and your installation is complete.
If you need any help in installation, we’re always available to assist you.
Cost Effective as Compared to Wired Device:
Wired Device needs Timely Maintenance and Wire will be damaged over the period time, Hence Recurring Money Wastage. Wired Device Can’t be placed at Convenient Place. Wireless is Easy to Install, even a Child can Install it as it is complete Hassle Free & Non-Complicated.
